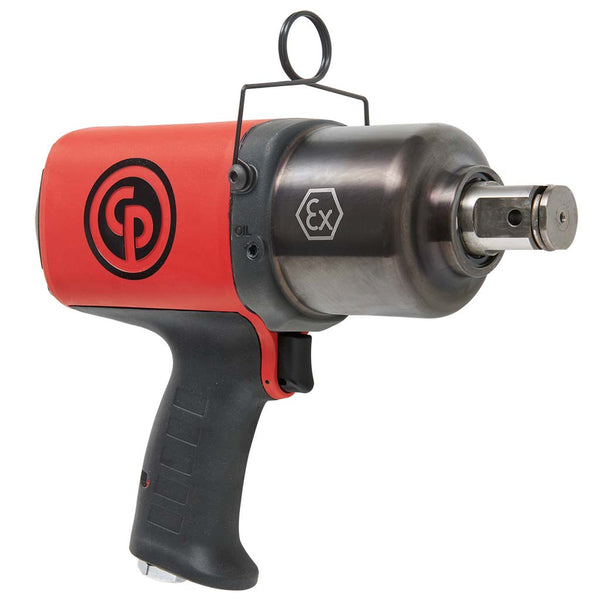

New range - Premium Composite!
Twin hammer in oil bath and steel clutch housing for long life
Extremely durable steel motor
Dust-proof (IP6) and ATEX certified
Extremely durable steel motor
Dust-proof (IP6) and ATEX certified
Superior durability - designed for intensive use
High torque - up to 1290 ft.lb (1750 Nm)
Comfortable and light weight
High torque - up to 1290 ft.lb (1750 Nm)
Comfortable and light weight
Box dimensions | 100 x 260 x 280 mm |
Length | 255 mm |
Net weight | 4.6 kg |
Side to center | 45 mm |
Actual air consumption | 18 l/s |
Free speed air consumption | 26 l/s |
Air inlet thread size | 3/8" |
Min. hose size | 13 mm |
Sound pressure | 94 db(A) |
Sound Power | 105 db(A) |
Vibration ISO | ISO-28927-2 |
Vibration | 9.4 m/s² |
Vibration uncertainty (K) | 2.4 m/s² |
Handle type | Pistol |
Square drive | 1" |
Working Torque Range (fwd) | 400 - 1400 Nm |
Maximum Torque (reverse) | 1750 Nm |
Free speed | 5100 rpm |
Blows per minute | 1050 |
Power/weight ratio | 380 Nm/kg |
Socket retainer | Dual (hole+friction) |
Clutch type | Twin hammer / Oil Bath |
