Best in class productivity and optimal operator safety
Integrated Overspeed Shut-off device for improved safety
Streamlined safety lever
Robust aluminum housing
9" (230 mm) cup wheel capacity
4.5 hp (3,400 W) high power governed motor
6,000 rpm free speed
ISO 11184-7 compliant (for CE markets)
Streamlined safety lever
Robust aluminum housing
9" (230 mm) cup wheel capacity
4.5 hp (3,400 W) high power governed motor
6,000 rpm free speed
ISO 11184-7 compliant (for CE markets)

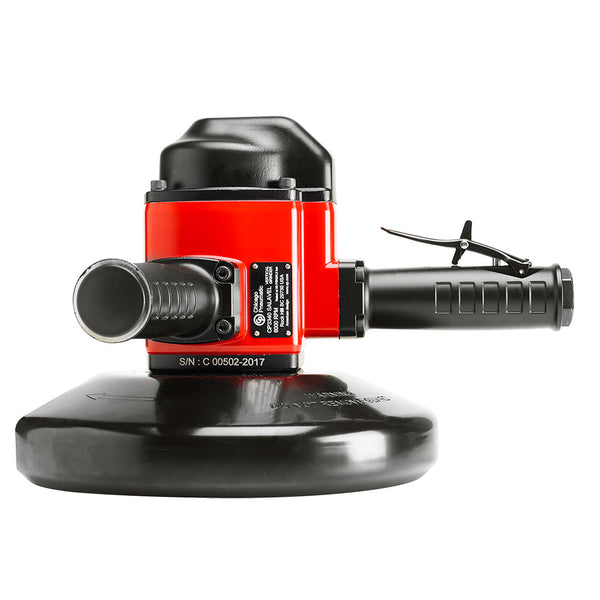

Industrial vertical wheel grinder
Avoids abrasive bursts in case of accidental air pressure variations
Maintains abrasive speed under operator load
Best in class productivity with up to 1,000 hour maintenance intervals
Avoids abrasive bursts in case of accidental air pressure variations
Maintains abrasive speed under operator load
Best in class productivity with up to 1,000 hour maintenance intervals
| Power | 3400 W |
| Length | 250 mm |
| Net weight | 5.85 kg |
| Side to center | 50 mm |
| Over carton | 14.4*13.2*9.3 mm |
| Actual air consumption | 45 l/s |
| Free speed air consumption | 16 l/s |
| Air inlet thread size | 1/2" |
| Min. hose size | 16 mm |
| Sound pressure | 95 db(A) |
| Sound Power | 106 db(A) |
| Vibration ISO | ISO-28927-1 |
| Vibration | < 2.5 m/s² |
| Spindle thread | 5/8-11 |
| Wheel size | 230 mm |
| Free speed | 6000 rpm |
| Height over spindle | 220 mm |
| Side exhaust | yes |
